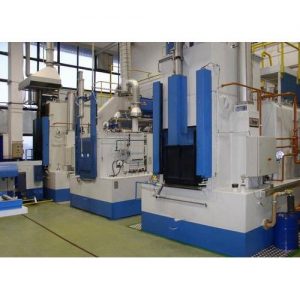

Sealed Quench Furnaces



When we talk about modern heat treatment, one question always comes up — how can we achieve uniform hardness without surface damage or distortion? The answer often lies in advanced thermal systems that combine controlled heating with protected cooling environments.

A Sealed Quench Furnace plays a critical role in today’s metal hardening industry. We use this system to deliver consistent metallurgical results, protect components from oxidation, and maintain dimensional stability during heat treatment.

Understanding Industrial Heat Treatment Needs

In industries like automotive, aerospace, and heavy engineering, parts must handle extreme stress. Gears, shafts, dies, and bearings cannot fail. We rely on controlled heating and rapid quenching to improve their strength and durability.

The Sealed Quench Furnace process allows us to:

• Maintain a protective atmosphere
• Prevent scaling and oxidation
• Achieve uniform hardness
• Reduce distortion
• Ensure repeatable batch results

Unlike open furnaces, this system seals the chamber, controls gas flow, and transfers the load safely to the quench tank.

What Makes This System Different?

We design our furnace with a sealed chamber connected directly to an oil quench tank. The sealed design protects heated components from air exposure. That protection keeps surfaces clean and free from unwanted reactions.

“Consistency in heat treatment begins with a controlled atmosphere.”

The furnace operates in horizontal chamber design, offering smooth material movement from heating to quenching.

Technical Specifications Overview

Below is a clear breakdown of core specifications we follow.

Feature	Specification
Temperature Range	Up to 1150°C
Insulation	Ceramic Fibre Boards / Blanket / Refractory Brick
Chamber Design	Electric / Gas / Oil Fired
Heating Media	Nichrome Wire / Special Alloy
Heating Elements	Nichrome / Silicon Carbide Rod
Instrumentation	PLC, SCADA, HMI, Thyristor Control

We build each unit for durability and long-term industrial use.

Heating and Atmosphere Control Systems

Heating Options

We provide two main heating configurations:

• Electric radiant tube heaters (Type E)
• Gas fired recuperative burner system (Type G)

Gas options include LPG, Propane, or Natural Gas.

Atmosphere Possibilities

We support multiple atmosphere combinations:

• Endogas with LPG
• Methanol with Nitrogen
• Direct gassing with LPG and Air

This flexibility allows us to control carbon potential during carburizing.



Advanced Automation and Control

PLC and SCADA Integration

We integrate:

• PLC based programmable control
• SCADA monitoring
• HMI interface
• Recipe management system

This automation allows fully automatic and man-less operation from a control room.

Operational Benefits

• Real-time monitoring
• Data recording
• Batch traceability
• Process repeatability

We believe automation ensures accuracy and safety.

Structural Design and Construction

Heavy Duty Fabrication

We construct the chamber using reinforced structural steel plates. Walls, roof, and hearth use high-grade refractory bricks to reduce heat loss and maintain low outer skin temperature.

Silicon Carbide Muffle

We install a silicon carbide muffle system that:

• Ensures uniform temperature
• Prevents cold spots
• Improves atmosphere distribution

Flat hearth design reduces fixture weight and increases load capacity.

Quenching and Cooling Capabilities

Oil Quenching

We offer:

• Oil quenching
• Salt quenching
• Polymer quenching
• Air or water assisted cooling

Hydro-pneumatic quench elevators provide smooth movement without jerks.

Cooling Flexibility

We support:

• Direct quenching
• Intermediate cooling
• Charge cooling under protective gas

This allows us to adjust cooling speed based on material type.

Operational Safety and Efficiency

We design every Sealed quench furnace in India with safety in mind.

Key safety elements include:

• Pneumatically operated sealed doors
• Wedge locking mechanism
• Flame curtain activation during unloading
• Enclosed transfer drive system

The special anti-carburizing alloy transfer chain ensures safe charge movement.

Applications Across Industries

The horizontal chamber system supports multiple treatments:

Heat Treatment Processes

• Case hardening
• Gas carburizing
• Neutral hardening
• Carbonitriding
• Annealing
• Stress relieving
• Ferritic nitrocarburizing

We can even perform basic hardening followed by nitro-carburizing in the same batch.

Products Processed

We commonly process:

• Gears
• Shafts
• Axle components
• Bearings
• Tools
• Forgings
• Castings
• Agricultural machinery parts
• Construction equipment components

The Sealed Quench Furnace process ensures strength and durability for all these components.

Why Industries Choose JrFurnace

As one of the trusted Sealed Quench Furnace manufacturers in India, we focus on:

• Long service life
• Energy efficiency
• Low maintenance
• Consistent results
• Custom batch capacities

We offer both:

• Two Door (CBUT Type)
• Single Door (CBUR Type)

This flexibility helps us fit different plant layouts worldwide.

Companion Equipment Integration

To maximize performance, we connect our system with:

• Preheating Furnaces
• Tempering Furnaces
• Washing Machines
• Scissor Lifts
• Charge Transfer Cars

This complete setup improves workflow and plant efficiency.

Key Features Summary

Main Highlights:

• Operating temperature up to 1150°C
• Electrically or gas heated
• Fully automated system
• Protective atmosphere control
• Oil, salt, or polymer quenching
• High volume recirculation fan
• Easy maintenance design

We engineer every element for smooth industrial operation.

Frequently Asked Questions

What is a Sealed Quench Furnace used for?

We use it for precision hardening of metal parts such as gears, shafts, and tools under a protective atmosphere.

What temperature range does it operate in?

It operates up to 1150°C depending on the application.

Can it perform carburizing?

Yes, it supports gas carburizing with different atmosphere combinations.

Is automation available?

Yes, we integrate PLC, SCADA, and HMI systems for full automation.

What industries use this furnace?

Automotive, aerospace, heavy engineering, agriculture machinery, and construction sectors.
