Salt Bath Furnace

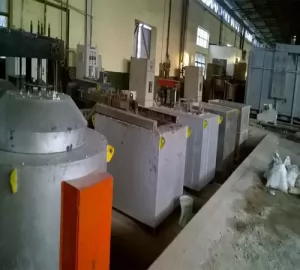

We are Salt Bath Furnace Manufacturers in India. Electrically heated salt bath crucible furnaces for uniform and fast heat treatment of work pieces and tools under exclusion of air.
Read More
Salt Bath Furnace
Salt Bath Furnace technology plays a major role in modern salt bath heat treatment processes used in industries such as tool manufacturing and alloy steel processing. But have you ever wondered how metal components achieve such uniform heating without surface damage?
The answer often lies in a salt bath furnace. This system heats metal parts by immersing them directly into molten salt, allowing rapid and even heat transfer. Because the salt itself acts as the heating medium and protective atmosphere, the process improves heating efficiency and reduces oxidation during heat treatment.
Industries rely on the electric salt bath furnace for processes such as hardening, tempering, quenching, nitriding, and other thermal treatments. Its design ensures consistent temperature control and dependable performance even in demanding production environments.
“A well-designed salt bath furnace delivers rapid and uniform heating while protecting metal surfaces during heat treatment.”
What Is a Salt Bath Furnace?
A salt bath furnace is a type of bath furnace used for heat treatment where molten salt acts as the heating medium. Instead of heating air like traditional furnaces, the system heats the salt and then immerses metal components inside it.
The molten salt transfers heat quickly and evenly to the load. This method produces precise results during salt bath heat treatment, making it highly effective for tools, alloy steel components, and industrial parts.
Key Features
- Uniform heating of components
- Fast heat transfer
- Protection from oxidation
- Reliable performance in production environments
- Suitable for multiple heat treatment processes
Because of these advantages, many manufacturers consider it the best salt bath furnace solution for specialized heat treatment applications.
Salt Bath Furnace Construction and Working
Understanding salt bath furnace construction and working helps explain why this equipment performs so efficiently in industrial heat treatment operations.
Main Components
| Component | Function |
| Transformer | Supplies controlled electrical power for heating |
| Refractory Pot | Holds molten salt and withstands high temperature |
| Electrodes | Transfer electrical energy to the salt |
| Insulation Layers | Reduce heat loss and maintain efficiency |
| Steel Framework | Supports the bath structure |
The system includes a heavy-duty oil-cooled step-down transformer made with high-grade silicon stamping sheets. This transformer provides adjustable heat levels and is mounted in a rigid steel body with cooling fins.
The refractory pot is constructed using high-alumina bricks designed for temperatures up to 1300°C, making it suitable for hardening alloy steel components.
Salt Bath Furnace Working Principle
The Salt bath furnace working principle is based on heating molten salt to a specific temperature and then immersing the metal components inside the bath.
Step-by-Step Process
- Electrical power flows through the transformer.
- Electrodes transfer energy into the salt bath.
- The salt heats up and becomes molten.
- Metal parts are submerged into the molten salt.
- Heat transfers quickly and evenly to the components.
This process provides rapid heating compared to air furnaces.
Typical temperature ranges include:
- Preheating: 700°C
- Medium Heat: 1000°C
- High Heat: 1250°C
- Tempering: 500°C
Because the molten salt surrounds the entire component, it ensures uniform heating during salt bath heat treatment.
Salt Bath Furnace Diagram
A simplified salt bath furnace diagram usually includes the following parts:
- Transformer unit
- Electrodes submerged in molten salt
- Refractory pot
- Insulation layers
- Furnace structure
- Heating chamber
These components work together to maintain stable temperature and efficient heat transfer throughout the bath furnace.
Heating System and Electrodes
The electric salt bath furnace uses immersed electrodes made from mild steel. These electrodes connect to the transformer through heavy copper bus bars.
Electrode Advantages
- Easy replacement
- Cost-effective maintenance
- Stable electrical heating
Two auxiliary electrodes help start the bath heating process. Once the salt melts and reaches the desired temperature, these auxiliary electrodes are removed.
In some cases, the main electrode can also be water cooled to maintain performance during continuous operation.
Refractory and Insulation Design
The furnace structure includes graded layers of insulating materials surrounding the salt bath.
This design provides several benefits:
- Reduces heat loss
- Maintains safe external surface temperature
- Improves energy efficiency
- Extends furnace life
High-quality insulation also contributes to low energy consumption and lower operating costs, making it ideal for continuous production environments.
Fume Extraction System
During operation, fumes may form above the molten salt. A fume extraction duct connected to a motorized blower removes these fumes safely from the bath surface.
Important points include:
- Optional system available on request
- Improves workplace safety
- Helps maintain clean operating conditions
Ducting from the blower to the outside of the building is typically arranged by the customer.
Applications of Salt Bath Furnace
The salt bath furnace supports a wide range of industrial heat treatment processes.
Common Applications
- Tool heat treatment
- Alloy steel hardening
- Tempering processes
- Quenching operations
- Case hardening
- Nitriding
Because of its rapid heating ability, it is widely used for precision heat treatment of tools and mechanical components.
Advantages of Salt Bath Heat Treatment
The salt bath heat treatment process offers several advantages compared to conventional atmosphere furnaces.
Major Benefits
- Rapid heating of components
- Uniform temperature distribution
- Reduced oxidation
- Lower energy loss
- Compact furnace design
These features make the salt bath furnace highly efficient for industrial thermal processing.
Salt Bath Furnace Temperature Range
The furnace can operate across a wide temperature range depending on the application.
| Process | Temperature |
| Preheating | 700°C |
| Medium Heat | 1000°C |
| High Heat | 1250°C |
| Tempering | 500°C |
| Maximum Temperature | 1000°C or more depending on design |
These ranges allow industries to perform multiple salt bath heat treatment processes within one system.
Salt Bath Furnace Price and Cost
The salt bath furnace price depends on several factors such as size, temperature range, heating method, and customization.
Factors Affecting Cost
- Furnace capacity
- Heating system design
- Insulation quality
- Automation level
- Additional safety systems
In India, the salt bath furnace price in India varies depending on industrial requirements and customization.
Companies offering Salt Bath Furnace for sale usually design systems according to customer applications. As a result, the salt bath furnace cost can differ significantly based on specifications.
Why Industries Prefer the Best Salt Bath Furnace
Manufacturers often choose the best salt bath furnace because it provides reliable and consistent heat treatment results.
Key Reasons
- Strong and robust construction
- Reliable operation in rough production conditions
- Low operating costs
- High-quality insulation
- Uniform heating throughout the bath
These advantages make it an excellent choice for industries requiring precise thermal processing.
Frequently Asked Questions
What is a salt bath furnace used for?
A salt bath furnace is used for heat treatment processes such as hardening, tempering, nitriding, and quenching of metal components.
How does a salt bath furnace work?
The Salt bath furnace working principle involves heating molten salt using electrodes or heating elements and immersing metal components inside the bath for rapid and uniform heating.
What is the typical salt bath furnace price in India?
The salt bath furnace price in India depends on furnace capacity, temperature range, and customization requirements.
Why is salt used in heat treatment?
Salt acts as both the heating medium and a protective atmosphere, which improves heat transfer and reduces oxidation during salt bath heat treatment.
Is a salt bath furnace energy efficient?
Yes. High-quality insulation and direct heat transfer make the electric salt bath furnace energy efficient compared to many conventional furnaces.
